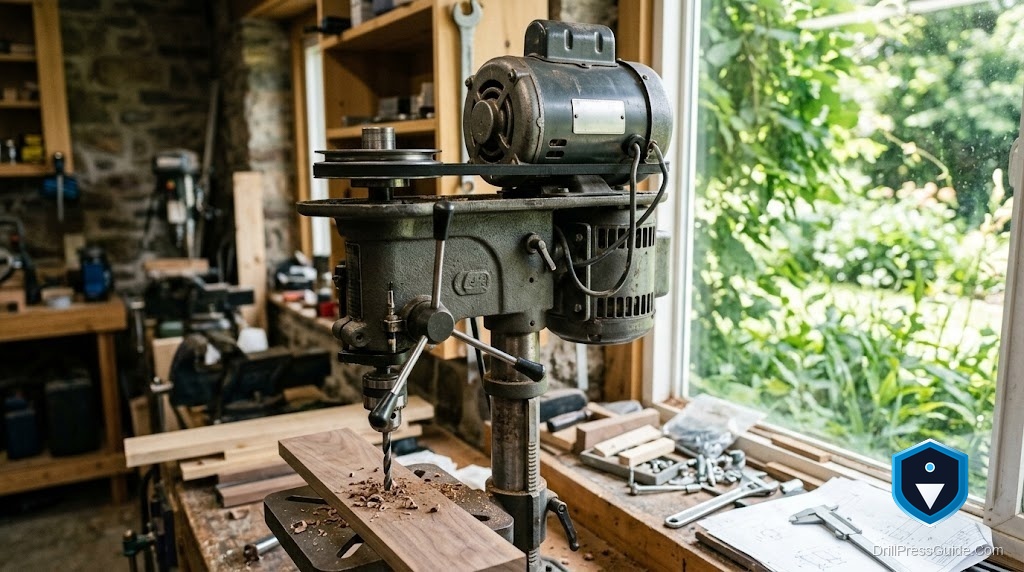

1/3 HP Electric Motor for a Drill Press: The Specs That Must Match Before You Order
Replacing the motor on your 8-inch benchtop drill press is a straightforward repair when you order the right 1/3 HP electric motor for your drill press. Order the wrong one and you are left with a motor that physically cannot be bolted into the machine without custom fabrication. This guide walks you through every spec that has to match before you click buy.
What Is a 1/3 HP Drill Press Motor?
A 1/3 HP single-phase induction motor is the standard power unit found on most 8-inch benchtop drill presses. It runs on standard 120V household current, spins at 1,725 RPM, and is sized by the NEMA frame system rather than by brand name. The HP rating tells you how much work the motor can do; the frame, shaft, and mount specs tell you whether it will physically fit your press.
Which Drill Presses Use a 1/3 HP Motor?
The 1/3 HP rating is appropriate for 8-inch benchtop drill presses. Common machines in this category include the Delta 11-950, the Craftsman 113.213080, and the WEN 4208T. Do not use a 1/3 HP replacement on a 12-inch or larger floor press.
The Five Specs That Must Match
NEMA Frame Size. Most 1/3 HP drill press motors use a NEMA 48 frame. Some older or heavier-duty 8-inch presses use a NEMA 56 frame. The frame number defines the mounting hole pattern, the shaft height above the base, and the overall body dimensions. Check the nameplate on your current motor; the frame designation is printed there.
Shaft Diameter. The shaft on a 1/3 HP drill press motor is typically 5/8 inch. If the replacement shaft is 1/2 inch instead, the pulley will spin loose or require a bushing adapter. Measure your existing shaft with calipers before ordering.
RPM. Drill press motors are almost always four-pole, 1,725 RPM units. A 3,450 RPM replacement will drive your chuck speeds far outside the intended range.
Voltage and Phase. Benchtop drill presses in home workshops run on single-phase 120V power. Confirm the replacement is single-phase. Three-phase motors require a phase converter or VFD.
Rotation Direction. Most drill press motors rotate counterclockwise when viewed from the shaft end. Check the wiring diagram on the motor nameplate to confirm.
Mount Type
Beyond the frame number, verify the mount style. C-face mounts and foot mounts are not interchangeable without fabrication. Most benchtop drill presses use a foot-mount motor that bolts to a motor plate inside the head casting.
Where to Buy
Grainger carries a wide selection of NEMA 48 and 56 single-phase motors with full nameplate specs listed online.
Northern Tool stocks replacement motors for shop equipment.
Amazon carries options from brands like Leeson, Century, and generic suppliers. Always cross-reference with the manufacturer’s datasheet before ordering.
The Honest Flaw
The single most common replacement mistake is ordering a motor that matches the HP but has the wrong shaft diameter, NEMA frame, or mount type. The result is a motor that requires drilling new mounting holes, machining a shaft adapter, or fabricating a custom motor plate. Measure twice, order once.
Who Should Skip DIY Motor Replacement
If you are not comfortable reading a motor nameplate, identifying wiring terminals, and connecting a capacitor-start motor to a power supply, hire an electric motor repair shop.
Comparison: 1/3 HP vs. Other Common Drill Press Motor Sizes
| HP Rating | Typical Press Size | NEMA Frame | Common Voltage |
|---|---|---|---|
| 1/3 HP | 8-inch benchtop | 48 (most common) | 120V single-phase |
| 1/2 HP | 10-inch to 12-inch | 48 or 56 | 120V single-phase |
| 3/4 HP | 14-inch to 17-inch floor | 56 | 115/230V dual-voltage |
| 1 HP | 17-inch heavy-duty floor | 56 | 115/230V dual-voltage |
Conclusion
Matching a 1/3 HP replacement motor comes down to five specs: NEMA frame, shaft diameter, RPM, voltage and phase, and rotation direction. Get all five right and the installation is a bolt-on job. Miss any one and you are into fabrication territory. Start with the nameplate on your current motor, confirm every spec against the replacement datasheet.
Key takeaways:
- NEMA 48 frame is the standard for most 8-inch benchtop presses, but verify yours before ordering.
- Shaft diameter is typically 5/8 inch; measure your existing shaft with calipers.
- 1,725 RPM four-pole, single-phase 120V is the correct spec for home workshop use.
- If the frame, shaft, or mount does not match, the motor will not fit without fabrication.
FAQ
What NEMA frame is a 1/3 HP drill press motor? Most 8-inch benchtop drill presses use a NEMA 48 frame. Verify against your current motor’s nameplate.
What shaft diameter does a 1/3 HP drill press motor have? Typically 5/8 inch. Measure your existing shaft with calipers.
Can I use a 1/3 HP motor on a 14-inch floor drill press? No. A 14-inch floor press is designed for 3/4 HP or higher.
What RPM should a 1/3 HP drill press motor run? 1,725 RPM. The standard four-pole, 60 Hz speed.
Can I replace a 1/3 HP motor with a 1/2 HP motor on an 8-inch press? The frame and shaft may match, but the press was designed for 1/3 HP. Replace with an equivalent 1/3 HP unit that matches all original specs.
What is the rotation direction for a drill press motor? Most are counterclockwise when viewed from the shaft end.
What causes a replacement motor to not fit even if the HP matches? Most commonly a mismatched NEMA frame (wrong mounting hole pattern) or the wrong shaft diameter.
Should I buy a capacitor-start or capacitor-run motor? Capacitor-start, induction-run (CSIR) is the standard type for drill press replacement motors.
